Heitec in the electronics industry: Innovative and robust

Plastic parts for the electronics industry are typically low weight and include delicate structures. They are most commonly made from flame-retardant fibre-reinforced plastics. Micro-switches, reed contacts, plug connectors and LEDs often come with inserts or are manufactured in reel-to-reel processes. We have been a partner to the electronics industry for many years, and we offer tailor-made hot runner systems for your individual application. Bring us your challenge.


Special requirements in the electronics industry:

  • Metal overmoulding
  • Reel-to-reel moulding
  • Parts with edge gates
  • Perfect gate marks
  • Processing of flame-retardant plastics

Application examples

Electronics industry

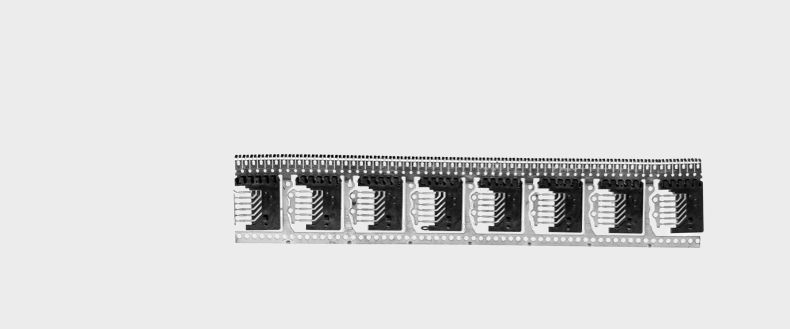

THERMAL FUSE

Technical data
Item weight:0,36 g including strip
Material:PPA GF 45
Dimensions:12 x 19 mm
Cavities:8-fold
Nozzle type:01.010.15.60
Special feature:Strip overmoulding

Heitec products:
FIRST-LINE

Electronics industry

BOBBIN

Technical data
Item weight:9,5 g/piece
Material:PBT GF 30 FR
Dimensions:38,8 x 41,7 mm
Cavities:4-fold
Nozzle type:61.120.15.60
Special feature:Asymmetrical part position
Electronics industry

PLUG HOUSING

Technical data
Item weight:9,5 g/piece
Material:PBT GF 30 FR
Dimensions:45,2 x 33 mm
Cavities:4-fold
Nozzle type:01.076.64
Special feature:Edge gating

Heitec products:
STAR-LINE

Electronics industry

FILL LEVEL SENSOR

Technical data
Item weight:3,2 g including insertion device
Material:PP GF30
Dimensions:5,8 x 33mm
Cavities:8-fold
Nozzle type:61.042.08
Special feature:

Gauge size 8 mm; strip overmoulding in 2 steps

Heitec products:
NV-FLAT-LINE
SYCRO-PLATE

Electronics industry

ADAPTER M25/M28

Technical data
Item weight:10,2 g
Material:PA 6 FR
Dimensions:Ø30 x 30 mm
Cavities:6-fold
Nozzle type:01.272.80.06
Special feature:Edge gating

Heitec products:
STARLINE
